Product Overview
Cryogenically Treated and demagnetized.

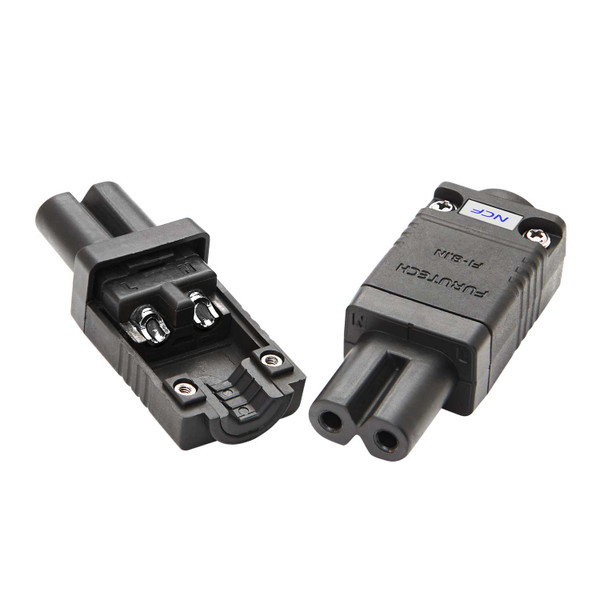

This is a slim-line version of the FI-8 IEC connector that is Rhodium plated and features the NCF treatment.
SPECIFICATIONS
• Rhodium-plated (Alpha) Phosphor Bronze Conductor.
• Nylon / fiberglass with special “NCF” anti-resonance damping material - nano-sized crystalline, piezo ceramic particles and carbon powder main body and clamps.
• Specified for cable outer diameters of 5.0mm / 10.5mm.
• Wire accommodation: Max. 2.0 Sq.mm / 14AWG.
• Connection: Solder
• Accessories: Round washer head screws (2 Pcs spares).
• Dimensions: 14.5mm X 21.5mm X 51.2mm overall length approx.
• Net Weight: 16.7g approx.
